Single and Double Angle Cutters
High Speed Steel Single Angle and Equal Angle


Single Angle Cutters are designed for chamfering or beveling parts and are manufactured in Single Right and Left Angle in 45° & 60°
Double Equal Angle Cutters are generally used for milling threads, V-grooves, serrations, and other angular surfaces. Double Angle are generally supplied in 45°, 60°, & 90° Included Angle

SIDE AND FACE CUTTERS
High Speed Steel straight and staggered tooth

Side Milling Cutters are supplied in straight and staggered tooth form for light and heavy deep slot operations in steel and in most soft materials,
PLAIN MILLING / CYLINDRICAL CUTTERS
High Speed Steel Light and heavy duty

The High Speed Steel cutters are used for surface cutting and finishing in all types of materials. Furnished with right or left hand cut, 30° Helix
SHELL END MILLS


The cutters are used for face and slab milling in all types of materials. Furnished with 30° Helix right or left hand cut in High Speed Steel.
CONVEX CUTTERS

These High Speed Steel cutters are form-relieved for milling concave half circles in all types of materials.
CONCAVE CUTTERS

These High Speed Steel cutters are form-relieved for milling convex half circles in all types of materials.
CORNER ROUNDING CUTTERS
High Speed Steel

These cutters are used to produce convex corner radii up to a quarter circle. furnished with form relieved right or left hand cut.Shank type cutters are also available.
METAL SLITTING SAWS


HSS Slitting saws are used for General slotting and sawing applications. Coarse Pitch and Fine Pitch cutters are supplied in Plain tooth, staggered tooth form to give chip clearance.

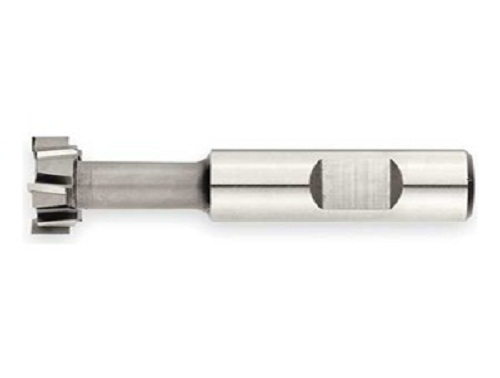

T-SLOT CUTTERS
High Speed Steel

Used for opening out the bottom of previously milled slot to form a T-slot. Alternate right and left hand helical flutes, can be had in flatted shank or threaded shank.
WOODRUFF KEYSEAT CUTTERS
High Speed Steel Plain and Staggered Tooth

Used for cutting the smaller Woodruff Keyseats. Alternate right and left hand helical flutes, can be had in flatted shank or threaded shank.
DOVETAIL CUTTERS
High Speed Steel


Used to produce dovetail slides for machine tool tables, jigs and fixtures. Regularly furnished right hand with 45º and 60º included angle.
